CAL 25
Specifications
Hull
| LOA | 25 ft |
| LWL | 20 ft |
| Beam | 8 ft |
| Draft | 4 ft |
| Displacement | 4,000 lb |
| Ballast | 1,700 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 29.8 ft |
| Jforetriangle base | 10 ft |
| Pmainsail luff | 25 ft |
| Emainsail foot | 11 ft |
| FLforestay | 10 ft |
| Mainsail | 297.5 sq ft |
| Jib (100%) | 149 sq ft |
| Spinnaker | 253.3 sq ft |
About the CAL 25

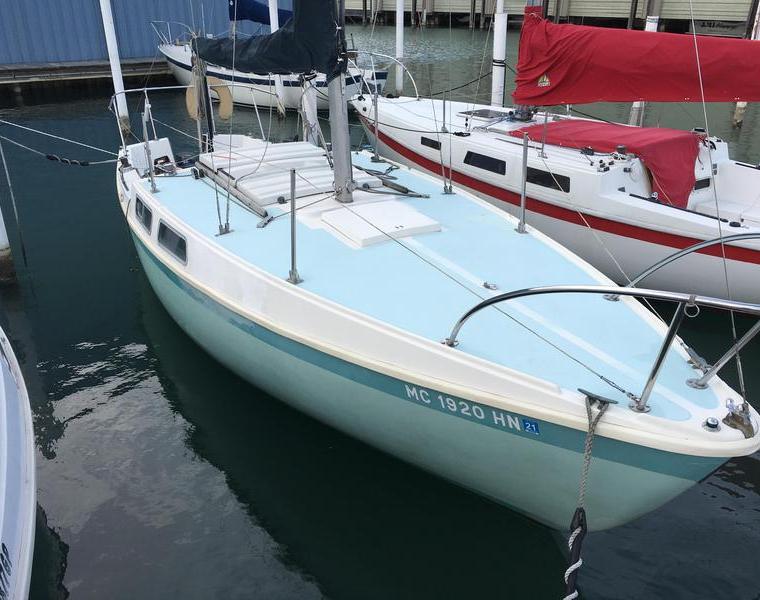

Flush deck with 'pop top' companionway. One of the most popular CAL models. A completely different design from the later Cal 2-25. Photo courtesy of Adam Hunt.
Designed by C. William Lapworth and built by Jensen Marine (USA) from 1965–1976, the CAL 25 is a classic trailerable cruiser with 1848 hulls produced. Its enduring popularity is reflected in the high volume of owner-reported upgrades, particularly in sails (North, Banks) and engines (Honda, Yanmar), indicating a strong aftermarket support network.
- Best for:
- This boat suits coastal cruisers and trailerable sailors seeking a manageable 25.0 ft LOA vessel with a 4.0 ft max draft, ideal for those prioritizing ease of transport and storage over heavy offshore endurance.
- Bluewater capability:
- With a 2.02 capsize ratio and 223.21 D/L ratio, the CAL 25 is primarily a coastal cruiser; while some owners have installed watermakers and wind generators for extended trips, its 20.0 ft LWL and fin keel design are not optimized for heavy offshore passage-making.
- Comparables:
- Comparable to other 1960s-70s trailerable sloops like the O'Day 23 or Pearson 23, the CAL 25 shares similar dimensions and roles, though its 4000.0 lb displacement and 18.01 comfort ratio suggest a slightly heavier, more stable ride than lighter planing designs.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.3 | 4.4 | 5.1 | 5.6 | 5.8 | 5.9 | 6.0 | 6.0 | 6.0 |
| 60° | 3.5 | 4.6 | 5.3 | 5.7 | 5.9 | 6.1 | 6.1 | 6.2 | 6.2 |
| 75° | 3.6 | 4.7 | 5.4 | 5.8 | 6.1 | 6.3 | 6.4 | 6.5 | 6.6 |
| 90° | 3.5 | 4.6 | 5.4 | 5.9 | 6.2 | 6.3 | 6.5 | 6.8 | 7.0 |
| 110° | 3.4 | 4.7 | 5.5 | 6.0 | 6.3 | 6.6 | 6.9 | 7.2 | 7.5 |
| 120° | 3.3 | 4.5 | 5.4 | 5.9 | 6.3 | 6.6 | 6.9 | 7.5 | 8.0 |
| 135° | 3.0 | 4.1 | 5.0 | 5.7 | 6.1 | 6.4 | 6.8 | 7.5 | 8.5 |
| 150° | 2.5 | 3.5 | 4.5 | 5.3 | 5.8 | 6.2 | 6.5 | 7.1 | 7.8 |
| Beat VMG | 2.1 | 2.9 | 3.4 | 3.8 | 4.1 | 4.2 | 4.3 | 4.2 | 4.1 |
| Run VMG | 2.1 | 3.1 | 3.9 | 4.6 | 5.2 | 5.7 | 6.0 | 6.6 | 7.2 |
