BAVARIA 320
Specifications
Hull
| LOA | 33.42 ft |
| LWL | 27.83 ft |
| Beam | 10.5 ft |
| Draft | 4.5 ft |
| Displacement | 8,158 lb |
| Ballast | 3,087 lb |
| Hull speed1.34·√LWL | 7.1 kn |
Rig & Sails
| Iforetriangle height | 37.45 ft |
| Jforetriangle base | 9.67 ft |
| Pmainsail luff | 37.75 ft |
| Emainsail foot | 12.47 ft |
| FLforestay | 9.7 ft |
| Mainsail | 435.3 sq ft |
| Jib (100%) | 181.1 sq ft |
| Spinnaker | 307.8 sq ft |

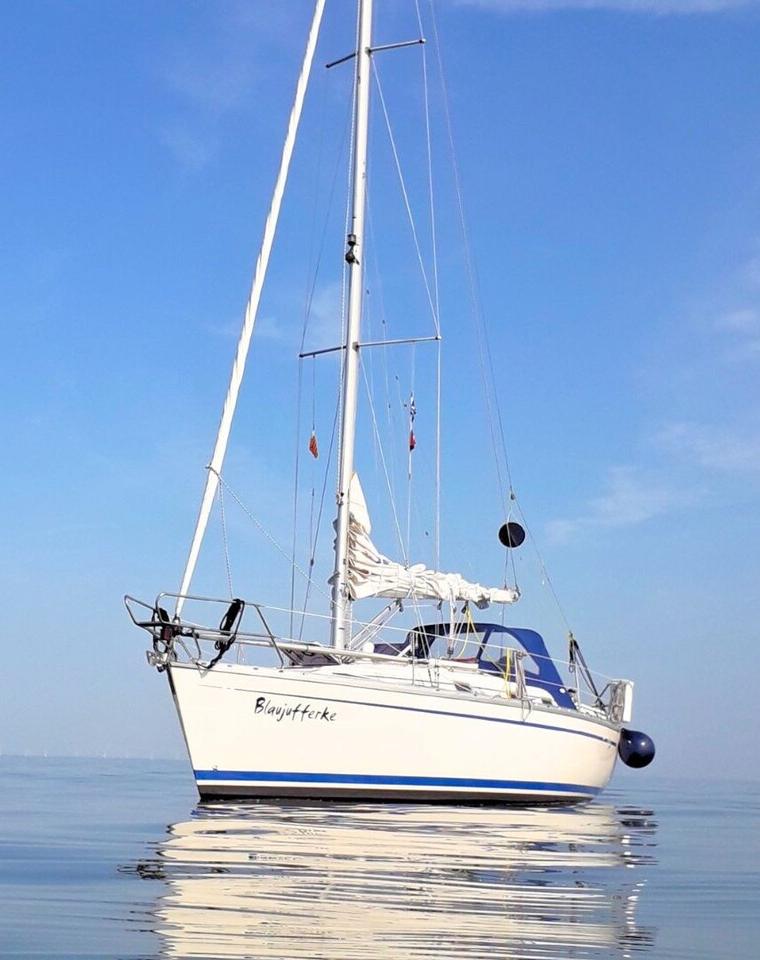

About the BAVARIA 320
The Bavaria 320 is a fractional sloop designed by Axel Mohnhaupt and built by Bavaria Yachts (GER) from 1988–1994. With a displacement of 8158.0 lb and a beam of 10.5 ft, this vessel represents a specific era of German production cruising yachts, though the exact total hulls built remains unconfirmed in available data.
- Best for:
- This boat suits coastal cruisers and weekend sailors who prioritize a spacious interior and easy handling over heavy offshore performance. Its fractional rig and moderate displacement make it accessible for couples or small families seeking a manageable, comfortable day-sailer or short-cruiser.
- Bluewater capability:
- With a capsize ratio of 2.09 and a comfort ratio of 18.65, the Bavaria 320 is best suited for coastal and protected waters rather than extended bluewater passages. Its relatively light displacement of 8158.0 lb and fin keel configuration suggest it lacks the heavy motion comfort and reserve stability preferred for serious offshore voyaging.
- Comparables:
- Comparable boats include the Beneteau First 323 and the O'Day 32, as they share similar production eras, fractional sloop rigs, and a focus on interior volume over pure racing metrics. These vessels also target the same market of recreational cruisers seeking a 30-35 ft package with moderate performance.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.3 | 4.5 | 5.3 | 5.9 | 6.3 | 6.5 | 6.7 | 6.8 | 6.7 |
| 60° | 3.5 | 4.7 | 5.6 | 6.2 | 6.5 | 6.7 | 6.8 | 7.0 | 7.0 |
| 75° | 3.7 | 4.9 | 5.8 | 6.3 | 6.7 | 6.9 | 7.0 | 7.3 | 7.4 |
| 90° | 3.6 | 5.0 | 6.0 | 6.6 | 6.9 | 7.2 | 7.4 | 7.6 | 7.8 |
| 110° | 3.6 | 5.0 | 6.1 | 6.6 | 7.0 | 7.3 | 7.6 | 8.2 | 8.8 |
| 120° | 3.5 | 4.8 | 5.9 | 6.5 | 6.9 | 7.2 | 7.5 | 8.3 | 9.2 |
| 135° | 3.1 | 4.3 | 5.4 | 6.2 | 6.7 | 7.0 | 7.3 | 7.9 | 8.9 |
| 150° | 2.5 | 3.7 | 4.7 | 5.5 | 6.2 | 6.7 | 7.0 | 7.5 | 8.2 |
| Beat VMG | 2.1 | 2.9 | 3.5 | 4.0 | 4.4 | 4.6 | 4.8 | 4.8 | 4.7 |
| Run VMG | 2.2 | 3.2 | 4.1 | 4.8 | 5.5 | 6.1 | 6.5 | 7.1 | 7.6 |
Estimated Value
Limited DataAsking price by model year
6 listings · boat years 1989–2011 · median $42,660
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 33.42ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
3 reported issues across 2 systems for the BAVARIA 320, compiled from owner reports in sailing forums and owner-association material.
