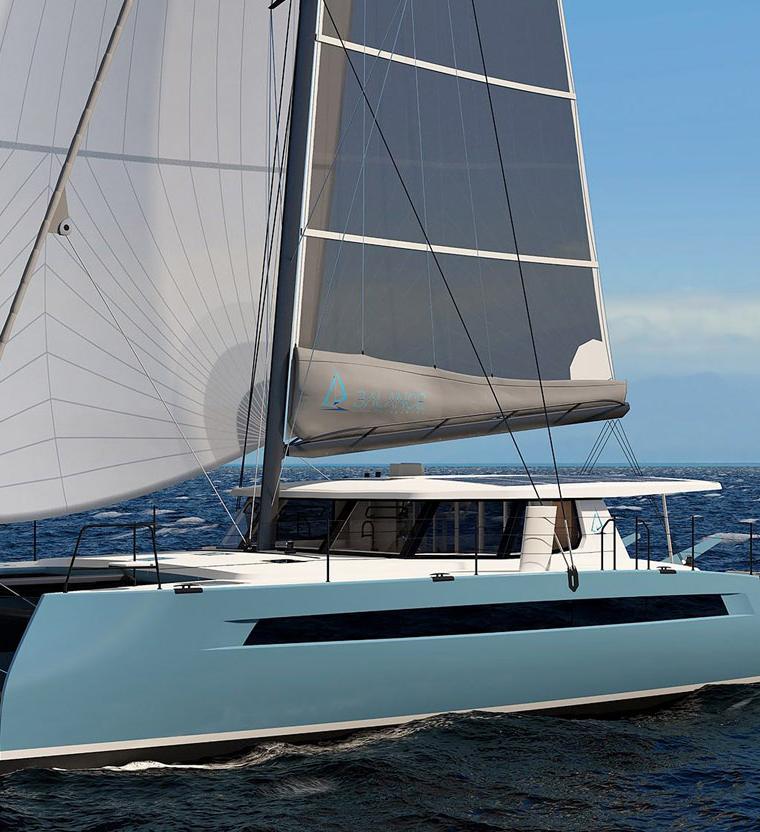

BALANCE 540
Specifications
Hull
| LOA | 54.49 ft |
| LWL | 54.46 ft |
| Beam | 27.49 ft |
| Draft | 10.37 ft/ 4.07 ft min |
| Displacement | 31,967.03 lb |
| Hull speed1.34·√LWL | 9.9 kn |
Rig & Sails
| Mainsail | 1,247.64 sq ft |
| Jib (100%) | 694.7 sq ft |
| Spinnaker | 2,692.59 sq ft |
About the BALANCE 540
Three construction versions: Carbon Cross: Epoxy w/carbon core and superstructure Carbon Cross+: Adds carbon coach roof, cockpit, foredeck and transoms Carbon XP: 100% epoxy resin and full carbon construction Available with VersaDrive Hybrid engine: 2x 15 kW, 2x 20hp Integral E-Drive; 2x 34 kW, 2x 45 hp Yanmar diesel Displacement: 14,500 - 15,500 kg / 31,970 - 34,178 lbs depending on equipment. Max load: 20,150 kg / 44,430 lbs. Sail area (reported) above = 100% fore triangle Individual Sail area: -Main: 115.91 m² / 1,247.65 ft² -Working genoa: 64.54 m² / 694.7 ft² -Asymmetric spinnaker: 250.15 m² / 2,692.59 ft² -160% Screacher: 142.74 m² / 1,536.55 ft²
Performance
Pricing
We don't have market pricing data for the BALANCE 540 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 54.49ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the BALANCE 540yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a BALANCE 540? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
