AVANCE 40
Specifications
Hull
| LOA | 40 ft |
| LWL | 32 ft |
| Beam | 12.6 ft |
| Draft | 8.83 ft/ 4.92 ft min |
| Displacement | 19,600 lb |
| Ballast | 8,420.2 lb |
| Hull speed1.34·√LWL | 7.6 kn |
Rig & Sails
| Iforetriangle height | 47.07 ft |
| Jforetriangle base | 15.35 ft |
| Pmainsail luff | 52.18 ft |
| Emainsail foot | 17.8 ft |
| FLforestay | 15.4 ft |
| Mainsail | 862.8 sq ft |
| Jib (100%) | 361.3 sq ft |
| Spinnaker | 614.1 sq ft |

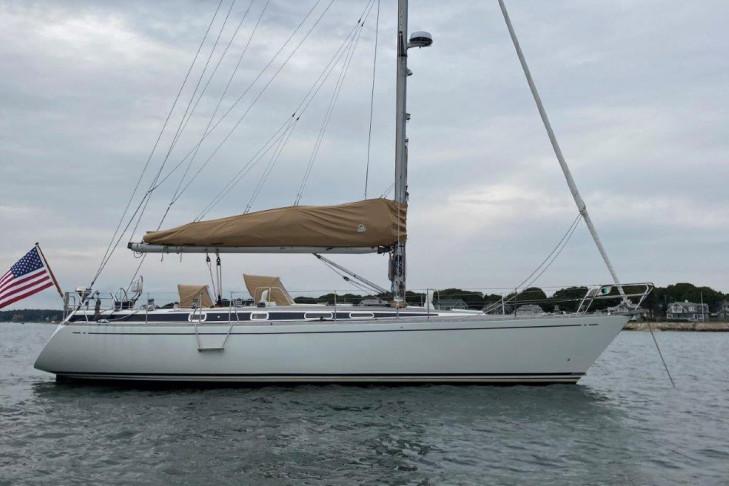

About the AVANCE 40
S&S #2436. Fin keel version draft: 7.02'.
The Avance 40 is a robust, heavy-displacement cruiser designed by Sparkman & Stephens and built by AB Oja Batar in Finland in 1982. With a displacement of 19600.0 lb and a D/L ratio of 267.03, it represents a classic, seakworthy design intended for serious offshore passage-making rather than light coastal racing.
- Best for:
- This boat suits experienced bluewater cruisers and those seeking a stable, comfortable passage-maker who prioritize safety and seakeeping over high-speed performance. Its fractional sloop rig and heavy ballast ratio make it well-suited for single-handers or couples who value ease of handling in heavy weather.
- Bluewater capability:
- With a capsize ratio of 1.87 and a comfort ratio of 30.15, the Avance 40 is highly capable offshore, offering exceptional stability and motion comfort in heavy seas. Its full/long keel design and substantial ballast of 8420.2 lb provide reliable tracking and safety, making it a proven choice for extended ocean passages.
- Comparables:
- Comparable boats include the Tartan 40 and the Cal 40, as they share similar heavy-displacement characteristics, Sparkman & Stephens design heritage, and a focus on offshore durability. The Avance 40 distinguishes itself with its Finnish construction quality and slightly heavier displacement compared to many American contemporaries of the early 1980s.
Direct variant of the AVANCE 40
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.3 | 5.6 | 6.5 | 6.9 | 7.1 | 7.2 | 7.3 | 7.3 | 7.3 |
| 60° | 4.5 | 5.9 | 6.7 | 7.1 | 7.3 | 7.4 | 7.4 | 7.5 | 7.6 |
| 75° | 4.7 | 6.1 | 6.8 | 7.2 | 7.4 | 7.6 | 7.7 | 7.8 | 7.9 |
| 90° | 4.6 | 6.0 | 6.8 | 7.3 | 7.5 | 7.7 | 7.9 | 8.1 | 8.3 |
| 110° | 4.3 | 5.8 | 6.9 | 7.4 | 7.7 | 8.0 | 8.3 | 8.6 | 8.9 |
| 120° | 4.2 | 5.7 | 6.8 | 7.3 | 7.7 | 8.0 | 8.3 | 8.9 | 9.4 |
| 135° | 3.7 | 5.1 | 6.2 | 7.0 | 7.5 | 7.8 | 8.2 | 8.8 | 9.7 |
| 150° | 3.1 | 4.3 | 5.5 | 6.4 | 7.1 | 7.5 | 7.8 | 8.5 | 9.3 |
| Beat VMG | 2.7 | 3.7 | 4.4 | 4.8 | 5.0 | 5.1 | 5.2 | 5.2 | 5.2 |
| Run VMG | 2.7 | 3.8 | 4.7 | 5.6 | 6.3 | 6.8 | 7.3 | 7.9 | 8.5 |
Pricing
We don't have market pricing data for the AVANCE 40 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 40ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
10 reported issues across 7 systems for the AVANCE 40, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a AVANCE 40? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 10 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
