ATHENA 34
Specifications
Hull
| LOA | 34.61 ft |
| LWL | 27.56 ft |
| Beam | 9.45 ft |
| Draft | 5.91 ft |
| Displacement | 10,450 lb |
| Ballast | 4,563.5 lb |
| Hull speed1.34·√LWL | 7.0 kn |
Rig & Sails
| Iforetriangle height | 38.55 ft |
| Jforetriangle base | 12.72 ft |
| Pmainsail luff | 42.65 ft |
| Emainsail foot | 13.78 ft |
| FLforestay | 12.7 ft |
| Mainsail | 562.5 sq ft |
| Jib (100%) | 245.2 sq ft |
| Spinnaker | 416.8 sq ft |

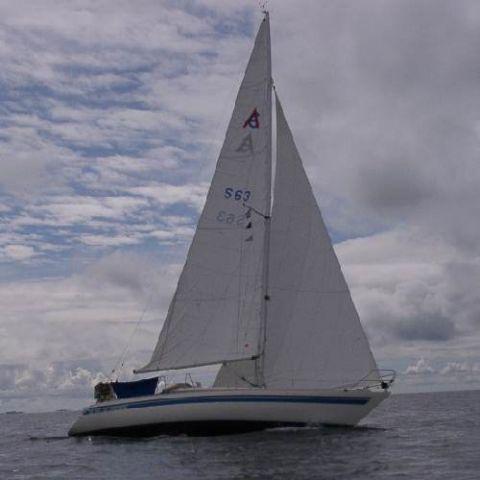

About the ATHENA 34
First sold by Posiedon Yachts and built in Sweden (boats with the hull number 1-62). Some time later the molds were aquired by Finngulf Marine(FIN) where at least 10 more were built with some modifications to the deck and interior.(FINNGULF 34)
Designed by Håkan Södergren and built by Helmsman Yachts and Saxarplast in Sweden, the Athena 34 was produced from 1980–1985 with a total of 70 hulls built. This Scandinavian cruiser-racer is characterized by its fractional sloop rig and robust construction, offering a blend of performance and comfort for its era.
- Best for:
- The Athena 34 suits coastal cruisers and those seeking a capable bluewater passage maker who value a comfortable interior and proven offshore pedigree. Its design appeals to sailors looking for a well-balanced boat that handles well in varied conditions, supported by a strong community of owners performing extensive upgrades.
- Bluewater capability:
- With a displacement of 10450.0 lb and a capsize ratio of 1.73, the Athena 34 demonstrates strong offshore stability and seaworthiness, making it highly suitable for extended bluewater passages. Its fin keel and fractional sloop rig provide reliable performance in heavy weather, backed by owner reports of successful long-distance cruising.
- Comparables:
- Comparable boats include the Hallberg-Rassy 34 and the Nauticat 34, as they share similar Scandinavian design philosophies, heavy displacement characteristics, and a focus on offshore safety and comfort. The Athena also compares favorably to the Tartan 34 in terms of size and cruising amenities, though with a more modern hull form.
Performance
ORC Performance Data(5 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.6 | 4.8 | 5.6 | 6.1 | 6.4 | 6.5 | 6.5 | 6.6 | 6.6 |
| 60° | 3.8 | 5.0 | 5.8 | 6.3 | 6.5 | 6.7 | 6.7 | 6.8 | 6.8 |
| 75° | 3.9 | 5.2 | 6.0 | 6.5 | 6.7 | 6.9 | 7.0 | 7.1 | 7.2 |
| 90° | 3.8 | 5.1 | 6.0 | 6.6 | 6.9 | 7.0 | 7.2 | 7.4 | 7.5 |
| 110° | 3.8 | 5.2 | 6.2 | 6.7 | 7.0 | 7.3 | 7.6 | 7.9 | 8.2 |
| 120° | 3.7 | 5.0 | 6.0 | 6.6 | 7.0 | 7.3 | 7.6 | 8.1 | 8.5 |
| 135° | 3.2 | 4.5 | 5.5 | 6.3 | 6.8 | 7.2 | 7.5 | 8.2 | 8.8 |
| 150° | 2.6 | 3.8 | 4.8 | 5.7 | 6.4 | 6.8 | 7.2 | 7.9 | 8.5 |
| Beat VMG | 2.3 | 3.2 | 3.8 | 4.2 | 4.4 | 4.5 | 4.6 | 4.7 | 4.6 |
| Run VMG | 2.3 | 3.3 | 4.2 | 5.0 | 5.7 | 6.3 | 6.7 | 7.3 | 7.9 |
Market Price
Estimated Cost of Ownership
Based on 34.61ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
16 reported issues across 8 systems for the ATHENA 34, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a ATHENA 34? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 16 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your ATHENA 34?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Brands sometimes mentioned for this model: Yanmar, Bukh, Universal, Perkins — is it one of these?
