ARCONA 410
Specifications
Hull
| LOA | 40.03 ft |
| LWL | 36.74 ft |
| Beam | 12.8 ft |
| Draft | 7.22 ft |
| Displacement | 17,196 lb |
| Ballast | 5,732 lb |
| Material | 40’12.2 m |
| Hull speed1.34·√LWL | 8.1 kn |
Rig & Sails
| Iforetriangle height | 54.46 ft |
| Jforetriangle base | 14.93 ft |
| Pmainsail luff | 53.15 ft |
| Emainsail foot | 19.19 ft |
| FLforestay | 14.9 ft |
| Mainsail | 957.3 sq ft |
| Jib (100%) | 406.5 sq ft |
| Spinnaker | 691.1 sq ft |
Accommodation
| Cabins | 2 |
| Berths | 4 |
| Heads | 1 |
| Water | 60.8 L |
| Fuel | 38.3 L |
| CE category | About240 000€(2020) |
About the ARCONA 410
Draft: Shallow: 2.00m/6.56' Std.2.20m/7.22' Deep 2.50m/8.2' Holding tank: 75l/20 gal.

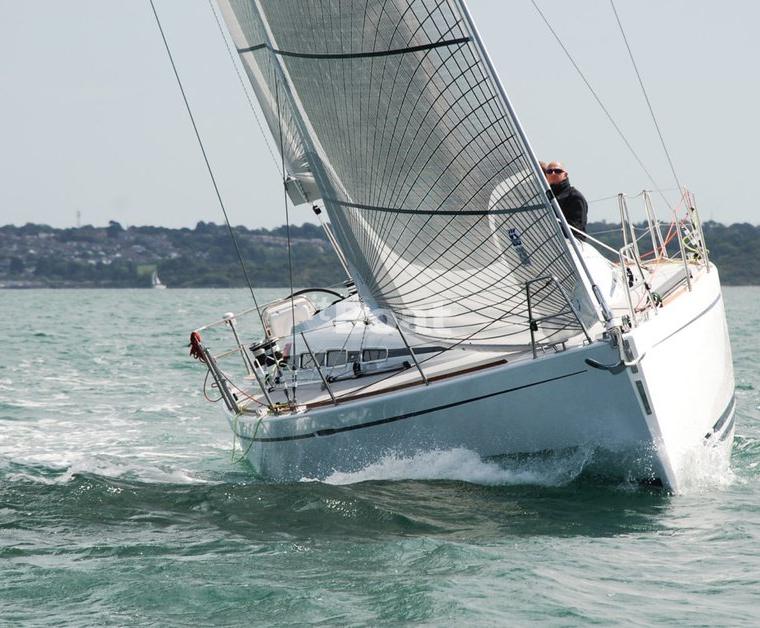

The Arcona 410 is a Swedish-built cruising yacht designed by Stefan Qviberg and constructed by Arcona Yachts (SWE) in 2009. With a displacement of 17196.0 lb and a beam of 12.8 ft, it represents a robust, modern design from a single production year.
- Best for:
- This vessel suits coastal cruisers and short-range bluewater travelers who prioritize a comfortable, stable platform with modern amenities, as evidenced by the high prevalence of solar panel installations and Webasto galley equipment.
- Bluewater capability:
- With a capsize ratio of 1.99 and a D/L ratio of 154.8, the Arcona 410 offers strong offshore stability and seakeeping, supported by a fin keel and a max draft of 7.22 ft.
- Comparables:
- Comparable boats include the Hallberg-Rassy 412 and the Nauticat 41, which share similar displacement ranges and Scandinavian build quality, though the Arcona distinguishes itself with a fractional sloop rig and a more contemporary interior layout.
Performance
ORC Performance Data(7 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.2 | 5.6 | 6.7 | 7.3 | 7.6 | 7.8 | 7.8 | 7.9 | 7.9 |
| 60° | 4.4 | 5.9 | 7.0 | 7.6 | 7.9 | 8.0 | 8.1 | 8.2 | 8.2 |
| 75° | 4.6 | 6.2 | 7.1 | 7.7 | 8.1 | 8.3 | 8.4 | 8.6 | 8.7 |
| 90° | 4.5 | 6.1 | 7.3 | 7.8 | 8.1 | 8.4 | 8.7 | 9.1 | 9.3 |
| 110° | 4.5 | 6.2 | 7.4 | 8.1 | 8.5 | 8.9 | 9.2 | 9.6 | 10.0 |
| 120° | 4.4 | 6.0 | 7.3 | 8.0 | 8.5 | 9.0 | 9.4 | 10.2 | 10.8 |
| 135° | 3.9 | 5.4 | 6.7 | 7.6 | 8.1 | 8.6 | 9.1 | 10.3 | 12.3 |
| 150° | 3.2 | 4.5 | 5.7 | 6.8 | 7.5 | 8.0 | 8.4 | 9.3 | 10.5 |
| Beat VMG | 2.6 | 3.7 | 4.5 | 5.1 | 5.3 | 5.5 | 5.5 | 5.6 | 5.5 |
| Run VMG | 2.8 | 3.9 | 5.0 | 5.8 | 6.5 | 7.0 | 7.5 | 8.2 | 9.1 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 40.03ft LOA. Actual costs vary by condition, usage, and local rates.
