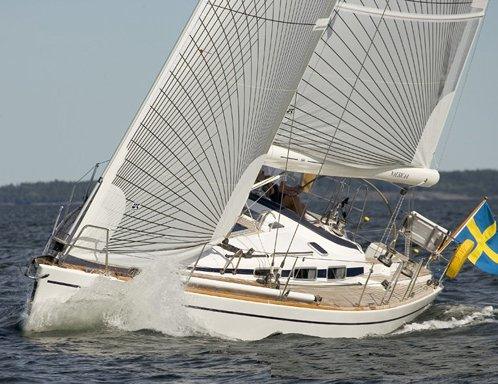

ARCONA 400
Specifications
Hull
| LOA | 39.3 ft |
| LWL | 34.45 ft |
| Beam | 12.53 ft |
| Draft | 7.87 ft |
| Displacement | 15,432 lb |
| Ballast | 5,952.1 lb |
| Hull speed1.34·√LWL | 7.9 kn |
Rig & Sails
| Iforetriangle height | 52.33 ft |
| Jforetriangle base | 13.94 ft |
| Pmainsail luff | 50.36 ft |
| Emainsail foot | 18.04 ft |
| FLforestay | 13.9 ft |
| Mainsail | 855.3 sq ft |
| Jib (100%) | 364.7 sq ft |
| Spinnaker | 620.1 sq ft |
About the ARCONA 400
Shallow draft: 2m/6.56'
The Arcona 400 is a robust fractional sloop designed by Stefan Qviberg and built by Boo Marin in Sweden, with production records indicating a start year of 2001. As a heavy-displacement cruiser with a displacement of 15432.0 lb and a comfort ratio of 22.91, it is engineered for stability and seakeeping rather than high-speed planing.
- Best for:
- This vessel suits experienced coastal cruisers and those seeking a comfortable, stable passage-making boat, particularly those who prioritize interior volume and heavy-weather safety over light-air performance. Its fractional rig and substantial ballast ratio make it manageable for short-handed crews, though its weight demands careful handling in light winds.
- Bluewater capability:
- With a low capsize ratio of 2.02 and a displacement of 15432.0 lb, the Arcona 400 is well-suited for offshore passages, offering excellent stability and resistance to capsizing in heavy seas. Its fin keel and substantial ballast of 5952.1 lb further support its reputation as a capable bluewater cruiser.
- Comparables:
- Comparable boats include the Hallberg-Rassy 41 and the Nauticat 41, as they share similar heavy-displacement characteristics, Scandinavian build quality, and a focus on safe offshore cruising. The Arcona 400 distinguishes itself with its specific fractional rig configuration and slightly higher sail area-to-displacement ratio of 22.49.
Performance
ORC Performance Data(13 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.0 | 5.5 | 6.5 | 7.2 | 7.5 | 7.6 | 7.7 | 7.8 | 7.8 |
| 60° | 4.3 | 5.8 | 6.8 | 7.4 | 7.7 | 7.8 | 7.9 | 8.0 | 8.0 |
| 75° | 4.5 | 6.0 | 7.0 | 7.5 | 7.8 | 8.1 | 8.3 | 8.4 | 8.5 |
| 90° | 4.4 | 6.0 | 7.1 | 7.7 | 8.0 | 8.2 | 8.5 | 8.9 | 9.1 |
| 110° | 4.4 | 6.0 | 7.2 | 7.9 | 8.3 | 8.7 | 9.1 | 9.5 | 9.9 |
| 120° | 4.3 | 5.9 | 7.1 | 7.8 | 8.3 | 8.7 | 9.2 | 10.1 | 10.9 |
| 135° | 3.7 | 5.2 | 6.5 | 7.4 | 7.9 | 8.4 | 8.9 | 10.1 | 12.0 |
| 150° | 3.1 | 4.4 | 5.6 | 6.6 | 7.3 | 7.8 | 8.2 | 9.1 | 10.2 |
| Beat VMG | 2.6 | 3.6 | 4.4 | 4.9 | 5.2 | 5.4 | 5.4 | 5.5 | 5.4 |
| Run VMG | 2.6 | 3.8 | 4.8 | 5.7 | 6.4 | 6.9 | 7.3 | 8.0 | 8.9 |
