ARCONA 340
Specifications
Hull
| LOA | 34.12 ft |
| LWL | 32.15 ft |
| Beam | 11.32 ft |
| Draft | 6.4 ft |
| Displacement | 11,464 lb |
| Ballast | 4,188.8 lb |
| Material | 34’ 1”10.4 m |
| Hull speed1.34·√LWL | 7.6 kn |
Rig & Sails
| Iforetriangle height | 48.23 ft |
| Jforetriangle base | 12.14 ft |
| Pmainsail luff | 47.08 ft |
| Emainsail foot | 15.75 ft |
| FLforestay | 12.1 ft |
| Mainsail | 693.2 sq ft |
| Jib (100%) | 441.32 sq ft |
| Spinnaker | 1,076.39 sq ft |
Accommodation
| Cabins | 2 |
| Berths | 4 |
| Heads | 1 |
| Water | 34.3 L |
| Fuel | 26.4 L |
| CE category | About128 000€(2020) |

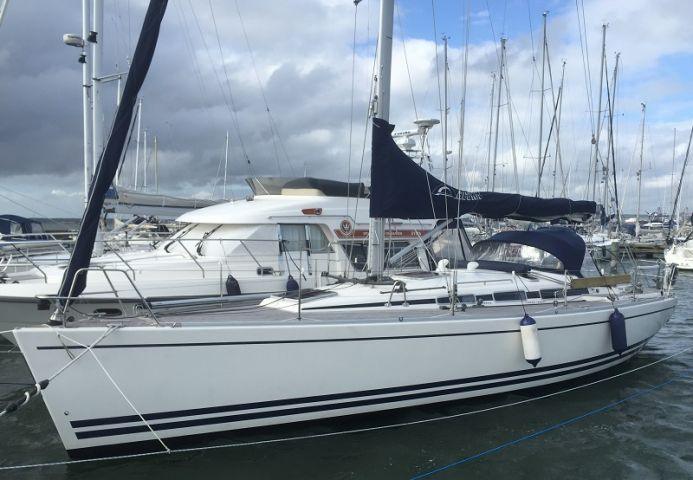

About the ARCONA 340
Shallow Draft: (1,80 m) Main sail 37.8 m2 Jib (106%) 29.4 m2 Furl Genoa 41.0 m2 Spinnaker 100 m2 Hot water tank 20 l Holding tank 50 l CE-class A/33/121
Designed by Stefan Qviberg and built by Arcona Yachts from 2010–2019, the Arcona 340 is a robust fractional sloop known for its heavy displacement and comfortable motion. With a displacement of 11464.0 lb and a comfort ratio of 21.37, it offers a stable platform that balances performance with liveaboard comfort.
- Best for:
- This boat suits coastal cruisers and liveaboard owners who prioritize interior volume and motion comfort over high-speed planing. Its fractional sloop rig and moderate sail area-to-displacement ratio make it manageable for couples or small families seeking a capable cruiser.
- Bluewater capability:
- With a low capsize ratio of 2.01 and a displacement of 11464.0 lb, the Arcona 340 is well-suited for offshore passages, offering excellent stability and resistance to capsizing in heavy weather.
- Comparables:
- Comparable boats include the Hallberg-Rassy 342 and the Nauticat 343, which share similar heavy-displacement characteristics and Scandinavian build quality. These vessels are comparable due to their focus on durability, interior space, and offshore readiness rather than racing performance.
Direct variant of the ARCONA 340
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(8 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.0 | 5.3 | 6.3 | 6.9 | 7.2 | 7.3 | 7.3 | 7.4 | 7.4 |
| 60° | 4.2 | 5.6 | 6.5 | 7.1 | 7.3 | 7.5 | 7.6 | 7.7 | 7.6 |
| 75° | 4.4 | 5.8 | 6.7 | 7.2 | 7.5 | 7.8 | 7.9 | 8.1 | 8.2 |
| 90° | 4.3 | 5.9 | 6.9 | 7.4 | 7.6 | 7.9 | 8.2 | 8.5 | 8.7 |
| 110° | 4.5 | 6.0 | 7.1 | 7.7 | 8.1 | 8.4 | 8.7 | 9.2 | 9.6 |
| 120° | 4.4 | 5.9 | 7.0 | 7.6 | 8.1 | 8.6 | 9.1 | 9.8 | 10.6 |
| 135° | 3.8 | 5.3 | 6.5 | 7.3 | 7.8 | 8.3 | 8.9 | 10.5 | 12.8 |
| 150° | 3.1 | 4.5 | 5.6 | 6.6 | 7.2 | 7.7 | 8.1 | 9.1 | 11.7 |
| Beat VMG | 2.5 | 3.5 | 4.3 | 4.8 | 5.1 | 5.2 | 5.2 | 5.3 | 5.1 |
| Run VMG | 2.7 | 3.9 | 4.9 | 5.7 | 6.3 | 6.7 | 7.1 | 7.9 | 10.1 |
