AMIGO 27
Specifications
Hull
| LOA | 25.26 ft |
| LWL | 19.68 ft |
| Beam | 8.37 ft |
| Draft | 4.26 ft |
| Displacement | 6,393 lb |
| Ballast | 2,644.8 lb |
| Hull speed1.34·√LWL | 5.9 kn |
Rig & Sails
| Iforetriangle height | 25.59 ft |
| Jforetriangle base | 9.84 ft |
| Pmainsail luff | 27.56 ft |
| Emainsail foot | 10.83 ft |
| FLforestay | 9.8 ft |
| Mainsail | 287.1 sq ft |
| Jib (100%) | 125.9 sq ft |
| Spinnaker | 214 sq ft |

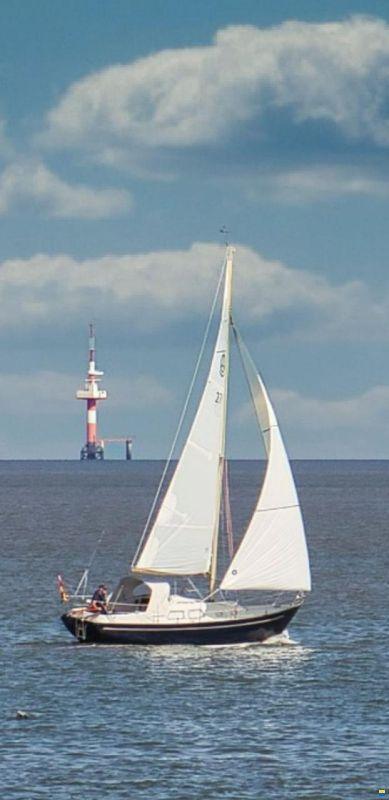

About the AMIGO 27
The Amigo 27 is a compact, full-keel sloop designed by Carl Andersson and built by Arne Arksunds in Sweden in 1973. With a displacement of 6393.0 lb and a beam of 8.37 ft, it represents a specific era of Scandinavian boatbuilding, though the exact number of hulls built remains unverified in available data.
- Best for:
- This boat is best suited for coastal cruising and protected waters, appealing to owners who prioritize a stable, comfortable ride over high-speed performance. Its fractional sloop rig and moderate sail area-to-displacement ratio of 12.81 suggest it is manageable for single-handers or couples seeking a low-maintenance cruiser.
- Bluewater capability:
- While the Amigo 27 features a conservative capsize ratio of 1.81 and a heavy displacement of 6393.0 lb that suggests inherent stability, its small size and single-year production run limit its proven track record for extended bluewater passages compared to larger, more widely produced designs.
- Comparables:
- Comparable boats include the Tartan 27 and the O'Day 27, which share similar dimensions and the full-keel, fractional sloop configuration typical of the early 1970s. These vessels offer similar displacement and beam characteristics, targeting the same market of affordable, stable coastal cruisers.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.3 | 4.0 | 4.5 | 5.0 | 5.3 | 5.5 | 5.7 |
| 60° | 3.5 | 4.2 | 4.8 | 5.2 | 5.5 | 5.7 | 5.9 |
| 75° | 3.8 | 4.6 | 5.2 | 5.6 | 5.7 | 5.8 | 6.1 |
| 90° | 4.1 | 5.0 | 5.6 | 5.9 | 6.1 | 6.2 | 6.3 |
| 110° | 4.1 | 5.0 | 5.6 | 5.9 | 6.2 | 6.4 | 6.8 |
| 120° | 4.0 | 4.9 | 5.5 | 5.8 | 6.1 | 6.3 | 6.8 |
| 135° | 3.6 | 4.4 | 5.2 | 5.6 | 5.9 | 6.2 | 6.7 |
| 150° | 3.1 | 4.0 | 4.7 | 5.3 | 5.7 | 6.0 | 6.4 |
| Beat VMG | 2.1 | 2.6 | 3.0 | 3.3 | 3.5 | 3.8 | 3.9 |
| Run VMG | 2.7 | 3.5 | 4.1 | 4.7 | 5.3 | 5.6 | 6.1 |
Market Price
Estimated Cost of Ownership
Based on 25.26ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the AMIGO 27yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a AMIGO 27? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
