1D 35
Specifications
Hull
| LOA | 35 ft |
| LWL | 31.5 ft |
| Beam | 10.75 ft |
| Draft | 7.58 ft |
| Displacement | 6,550 lb |
| Ballast | 2,525 lb |
| Hull speed1.34·√LWL | 7.5 kn |
Rig & Sails
| Iforetriangle height | 42.3 ft |
| Jforetriangle base | 12.5 ft |
| Pmainsail luff | 44.45 ft |
| Emainsail foot | 18.57 ft |
| FLforestay | 12.5 ft |
| Mainsail | 710.1 sq ft |
| Jib (100%) | 264.4 sq ft |
| Spinnaker | 559.8 sq ft |

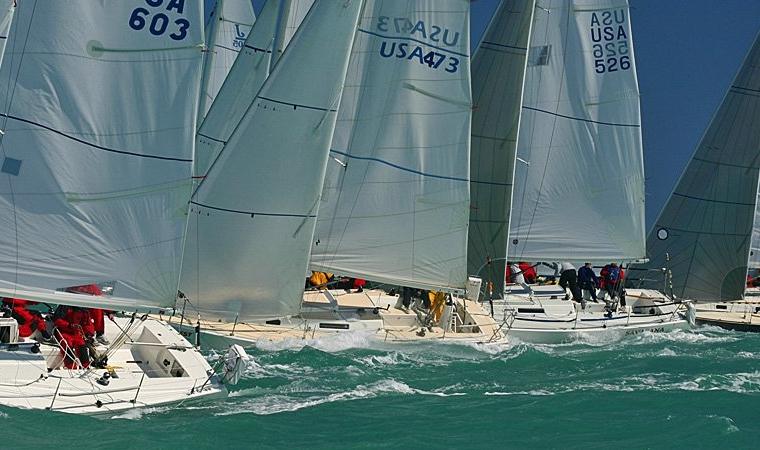

About the 1D 35
ONE-DESIGN 35. Carbon mast with twin, swept-back spreaders. As originally delivered for one-design racing, the 1D 35 has no backstay(s). (at hounds or topmast). Rig tension is controlled under way with an hydraulically adjustable fore stay. Dimensions shown here from a sample IRC cert.
The 1D 35 is a fractional sloop designed by Nelson/Marek and built by Carroll Marine Ltd.(USA) between 1998 and 2001, with a total production of 48 hulls. This limited production run suggests a niche market appeal, often associated with custom or semi-custom builds from that era.
- Best for:
- This vessel is best suited for coastal cruisers and performance-oriented sailors who appreciate a fractional rig and moderate displacement, given its D/L ratio of 93.55 and SA/D ratio of 36.77.
- Bluewater capability:
- With a displacement of 6550.0 lb and a capsize ratio of 2.3, the 1D 35 exhibits moderate offshore capability, though its relatively light displacement and fin keel suggest it is more optimized for coastal and nearshore cruising than heavy bluewater passage-making.
- Comparables:
- Comparable boats include the Nauticat 35 and the Tartan 35, as they share similar beam dimensions (10.75 ft) and fractional sloop rigs from the late 1990s, offering a balance of performance and comfort.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 6.0 | 7.1 | 7.4 | 7.5 | 7.6 | 7.7 | 7.8 |
| 60° | 6.4 | 7.3 | 7.6 | 7.8 | 7.9 | 8.0 | 8.2 |
| 75° | 6.7 | 7.4 | 7.9 | 8.2 | 8.4 | 8.6 | 8.9 |
| 90° | 6.6 | 7.4 | 7.9 | 8.5 | 9.0 | 9.3 | 9.6 |
| 110° | 6.4 | 7.4 | 8.1 | 8.6 | 9.1 | 9.5 | 10.8 |
| 120° | 6.2 | 7.3 | 8.1 | 8.9 | 9.5 | 9.9 | 11.2 |
| 135° | 5.6 | 6.9 | 7.6 | 8.3 | 9.2 | 10.3 | 12.4 |
| 150° | 4.7 | 5.8 | 6.9 | 7.6 | 8.2 | 9.0 | 11.0 |
| Beat VMG | 4.0 | 4.8 | 5.2 | 5.4 | 5.5 | 5.6 | 5.6 |
| Run VMG | 4.0 | 5.1 | 6.0 | 6.7 | 7.3 | 7.8 | 9.5 |
Pricing
We don't have market pricing data for the 1D 35 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 35ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the 1D 35yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a 1D 35? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
